Brushless Servo DC Motor 24V 48V 1kw 2kw 3kw Guided Vehicle/AGV/medical treatment/Gate/automaition

Product Description

Product Description

This permanent magnet high-power brushless DC motor uses a new structure

the maximum power of the current S1 working system can be 12KW,

from 0.5KW~12KWD power range to choose,

Voltage 24VDC to 120VDC,

Load torque 1N.M to 100N.M,

The motor tail adopts fan cooling, and can also be changed to water cooling according to the specific requirements of customers.

The motor is equipped with a multi-functional controller, if there are CAN functional requirements need additional customization,

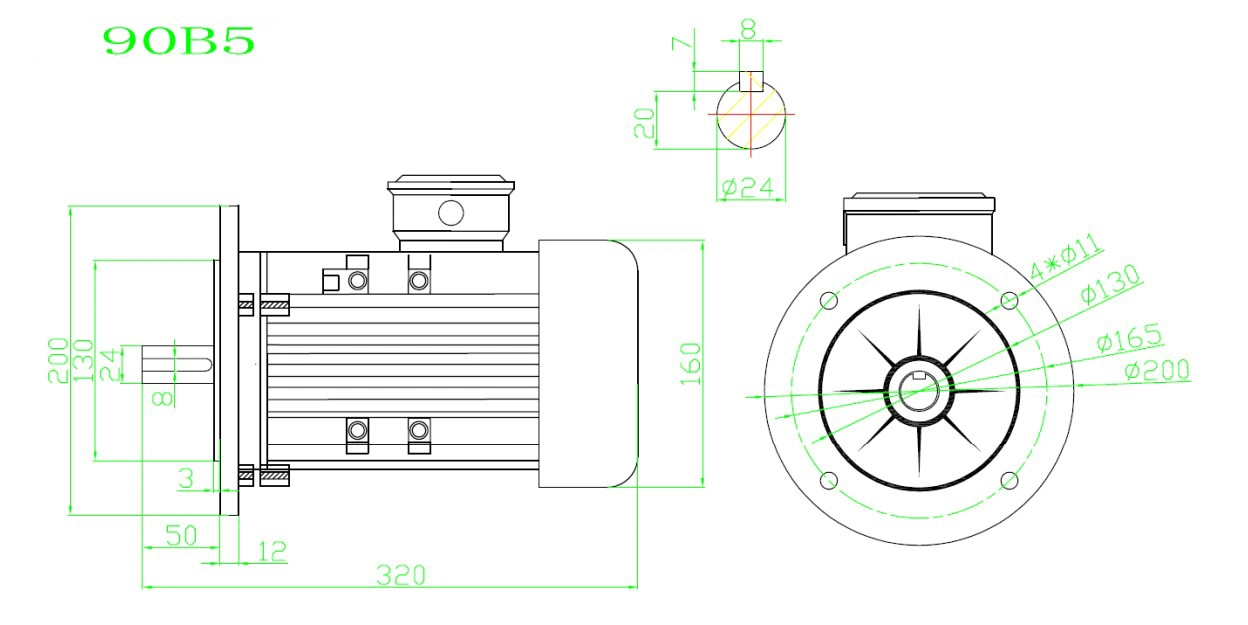

Motor installation fixed mode, horizontal installation B3, vertical flange installation B5, vertical horizontal installation B35. B14 and

B34 installation modes are also available.



Quick Details

Place of Origin: China

Certification: ce, RoHS Torque:20 N*m Construction:Permanent Magnet Commutation:Brushless

Protect Feature:Waterproof Speed(RPM):3000 Continuous Current(A):10-30A Efficiency:Ie 3

1. Product Features:

a. Protection grade:IP68, insulation grade:F

b. Winding overhang structure optimization, small volume, light weight, low temperature rise, high efficiency

c. Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials

d. Low noise, low vibration,

e. High torque, fast dynamic response, wide speed range, strong overload capacity

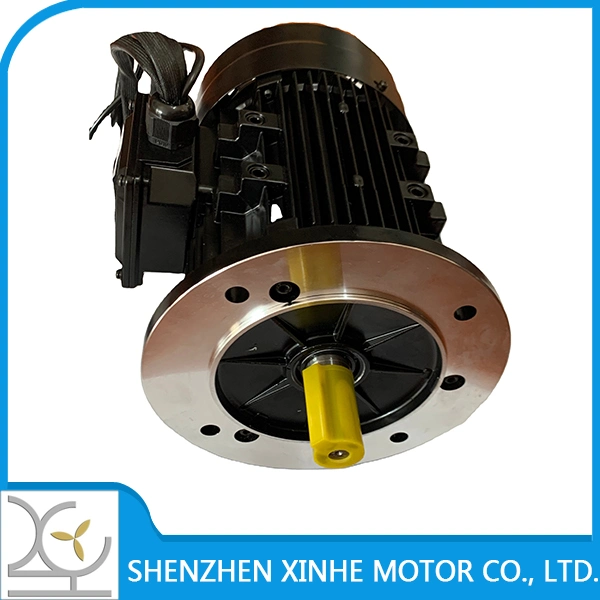

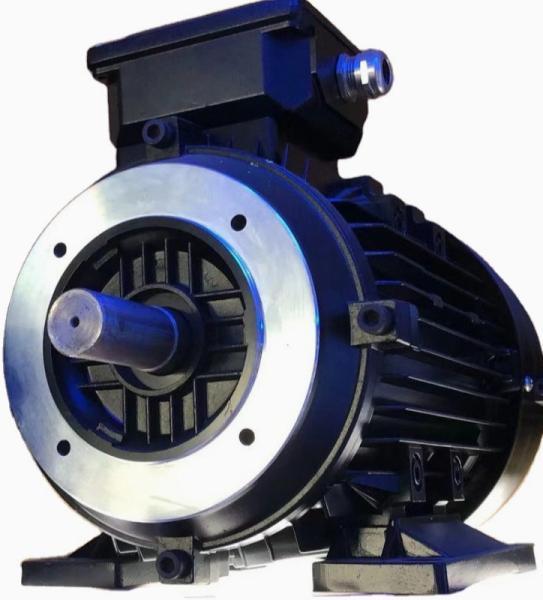

Detailed Photos

This permanent magnet high-power brushless DC motor

uses a new structure, the maximum power of the current S1

working system can be 12KW,

from 0.5KW~12KWD power range to choose,

Voltage 24VDC to 120VDC,

Load torque 1N.M to 100N.M,

The motor tail adopts fan cooling, and can also be changed

to water cooling according to the specific requirements of
customers.

The motor is equipped with a multi-functional controller, if there are CAN functional requirements need additional customization,

Motor installation fixed mode, horizontal installation B3, vertical flange installation B5, vertical horizontal installation B35. B14 and B34 installation modes are also available.

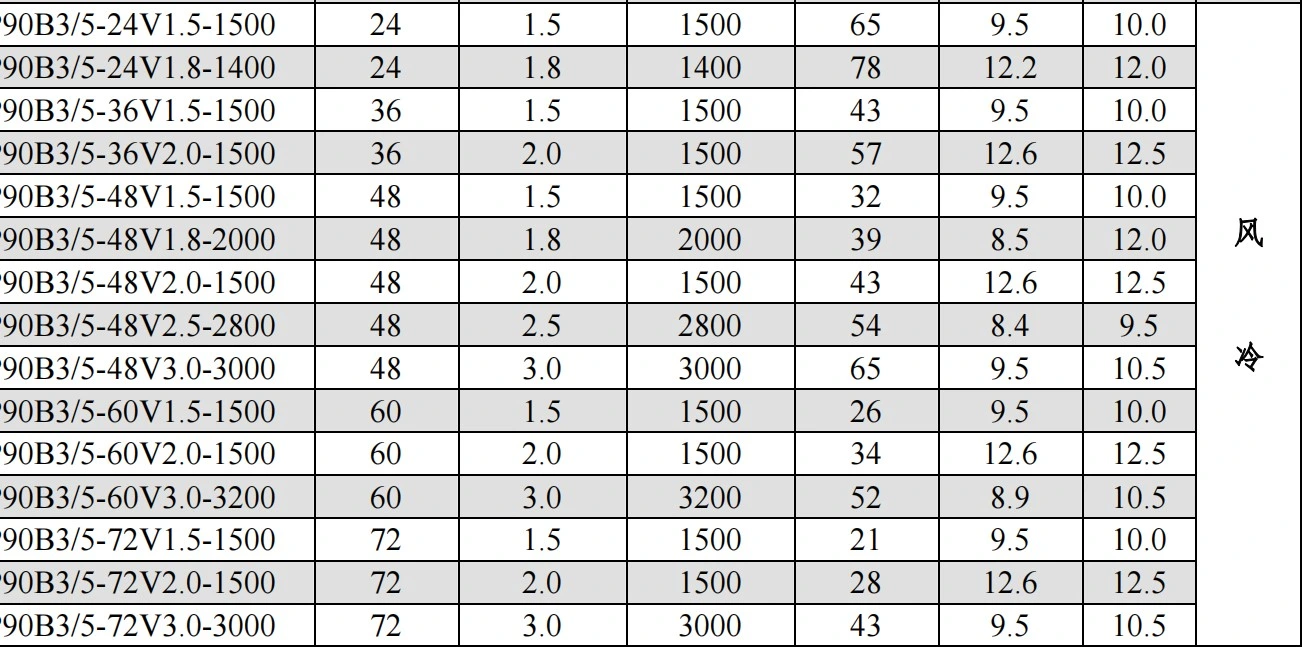

Product Parameters

Certifications

Packaging & Shipping

Company Profile

FAQ

Packaging and delivery
